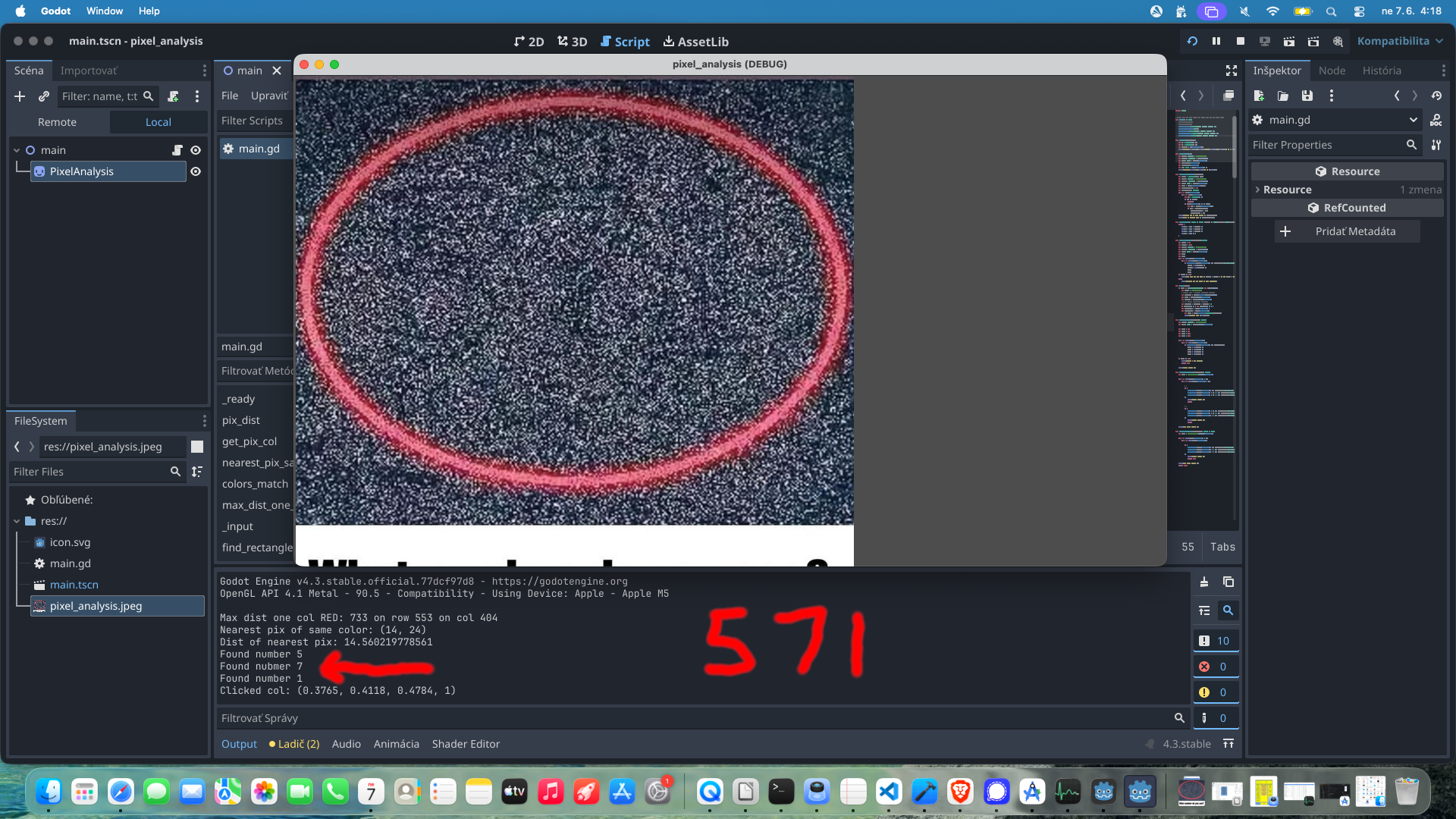

https://hrubos.tech/blogy/content/images/20260607042030-Snímka obrazovky 2026-06-07 o 4.18.02.png

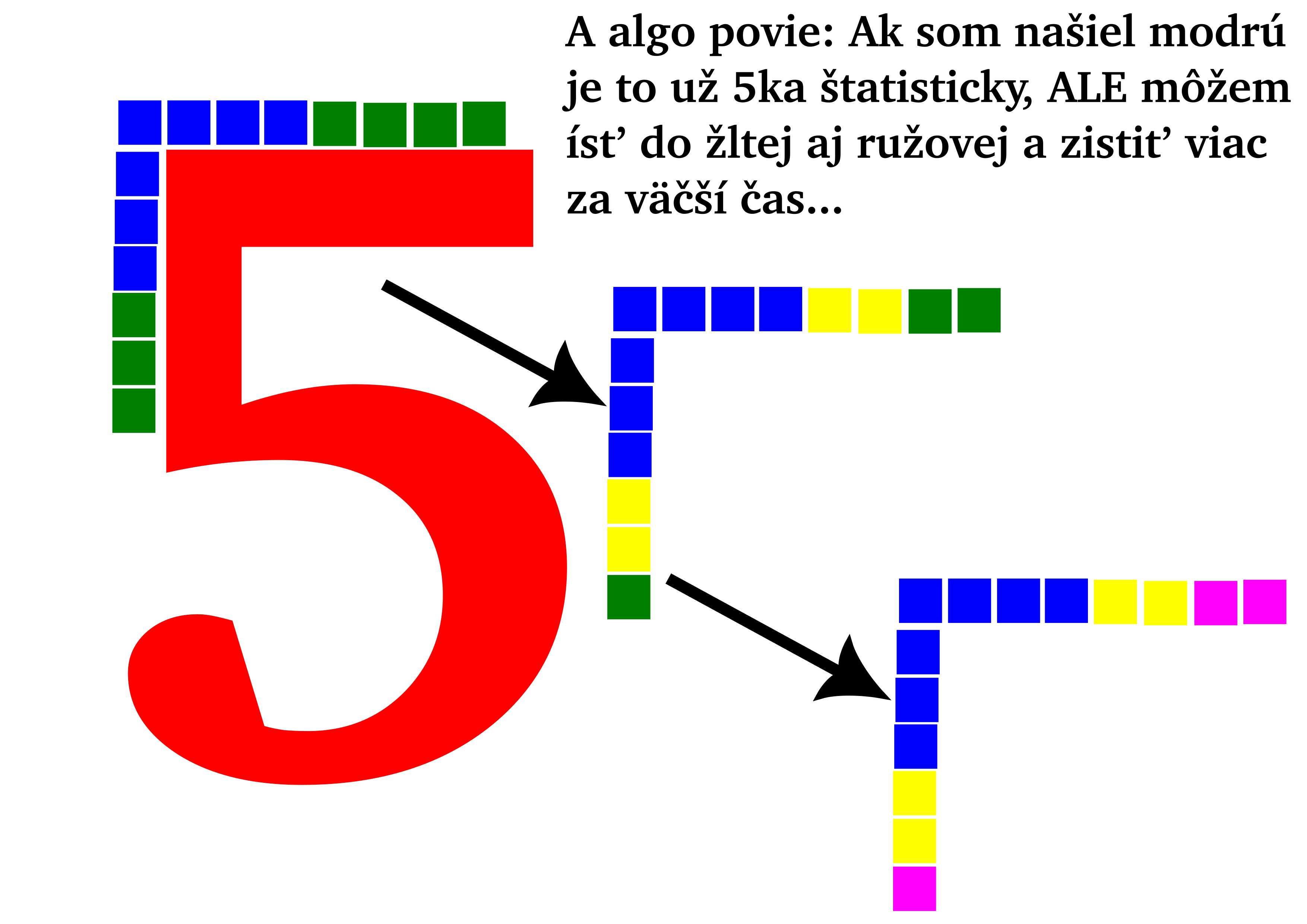

V jednoduchosti povedané, čo môj algo hľadá? Tvary číslic, toť všetko. Ak nájde pravý uhol, môže povedať je to 5ka, ak nájde uhlopriečku štvorca, môže odhadnúť, je to 7, ak nájde zvislý vektor, môže odhadnúť, je to 1 :) A ták, nó:

Edit2: Prečo nie napr 751? Veď algo môže vidieť napr kde konkrétny tvar je prvej? Hračka.

extends Node2D


# Called when the node enters the scene tree for the first time.
func _ready() -> void:
    #get_pix_col(10,10)
    #pix_dist(0,0,0,1)
    max_dist_one_col(Color(0.7843, 0.3412, 0.4118, 1))
    nearest_pix_same_col(10,10)
    find_rectangle(Color(0.0824, 0.0902, 0.1725, 1))
    get_square_diagonal(Color(0.0275, 0.0745, 0.1373, 1))
    get_vertical_line(Color(0.0275, 0.0745, 0.1373, 1))

func pix_dist(x1,y1,x2,y2):
    var p1 = Vector2i(x1, y1)
    var p2 = Vector2i(x2, y2)
    var distance = p1.distance_to(p2)
    print("dist:["+str(x1)+","+str(y1)+"]=>["+str(x2)+","+str(y2)+"] == " + str(distance))

func get_pix_col(x,y):
    var sprite: Sprite2D = $PixelAnalysis
    var texture: Texture2D = sprite.texture
    var image: Image = texture.get_image()
    var sizeh=image.get_height()
    var sizew=image.get_width()
    var col: Color = image.get_pixel(x, y)
    print("pixcol["+str(x)+","+str(y)+"] == "+str(col))

func nearest_pix_same_col(srcx,srcy):
    var source = Vector2i(srcx, srcy)
    var sprite: Sprite2D = $PixelAnalysis
    var texture: Texture2D = sprite.texture
    var image: Image = texture.get_image()
    var color = image.get_pixelv(source)
    var nearest_distance = INF
    var nearest_pixel: Vector2i
    for y in image.get_height():
        for x in image.get_width():
            var pos = Vector2i(x, y)
            if pos == source:
                continue
            if image.get_pixel(x, y) == color:
                var dist = source.distance_to(pos)
                if dist < nearest_distance:
                    nearest_distance = dist
                    nearest_pixel = pos
    print("Nearest pix of same color: ", nearest_pixel)
    print("Dist of nearest pix: ", nearest_distance)

func colors_match(a: Color, b: Color, epsilonr := 0.001,epsilong:=0.001,epsilonb:=0.001) -> bool:
    return (
        abs(a.r - b.r) < epsilonr &&
        abs(a.g - b.g) < epsilong &&
        abs(a.b - b.b) < epsilonb &&
        abs(a.a - b.a) == 0
    )

func max_dist_one_col(target_color:Color):
    var left_x = INF
    var right_x = -INF
    var sprite: Sprite2D = $PixelAnalysis
    var texture: Texture2D = sprite.texture
    var image: Image = texture.get_image()
    var row=0
    var col=0
    for y in range(image.get_height()):
        for x in range(image.get_width()):
            if colors_match(image.get_pixel(x, y), target_color,0.3,0.03,0.03):
                left_x = min(left_x, x)
                right_x = max(right_x, x)
                row=y
                col=x
    if left_x != INF:
        print("Max dist one col RED: ", right_x - left_x, " on row ",row, " on col ",col)
    else:
        print("Defined col not found at this picture!")

func _input(event):
    if event is InputEventMouseButton and event.pressed:
        var sprite = $PixelAnalysis
        # pozícia myši v lokálnom priestore sprite-u
        var local_pos = sprite.to_local(event.position)
        var image = sprite.texture.get_image()
        var tex_size = sprite.texture.get_size()
        # ak je sprite centrovaný (default)
        var pixel_pos = local_pos + tex_size / 2
        if pixel_pos.x >= 0 and pixel_pos.y >= 0 \
        and pixel_pos.x < image.get_width() \
        and pixel_pos.y < image.get_height():
            var color = image.get_pixelv(Vector2i(pixel_pos))
            print("Clicked col: "+str(color))

func find_rectangle(target_color: Color):
    var sprite: Sprite2D = $PixelAnalysis
    var image: Image = sprite.texture.get_image()

    var min_x = INF
    var min_y = INF
    var max_x = -INF
    var max_y = -INF

    for y in range(image.get_height()):
        for x in range(image.get_width()):
            if colors_match(image.get_pixel(x, y), target_color):
                min_x = min(min_x, x)
                min_y = min(min_y, y)
                max_x = max(max_x, x)
                max_y = max(max_y, y)

    if min_x == INF:
        print("Number 5 not found!")
        return null

    print("Found number 5")

func get_square_diagonal(target_color: Color):
    var image = $PixelAnalysis.texture.get_image()

    for y in range(image.get_height() - 2):
        for x in range(image.get_width() - 2):

            # \
            if (
                colors_match(image.get_pixel(x, y), target_color,0.3,0.3,0.3) and
                colors_match(image.get_pixel(x + 1, y + 1), target_color,0.3,0.3,0.03) and
                colors_match(image.get_pixel(x + 2, y + 2), target_color,0.3,0.3,0.3)
            ):
                print("Found nubmer 7")
                return

            # /
            if (
                colors_match(image.get_pixel(x + 2, y), target_color,0.3,0.03,0.03) and
                colors_match(image.get_pixel(x + 1, y + 1), target_color,0.3,0.3,0.3) and
                colors_match(image.get_pixel(x, y + 2), target_color,0.3,0.3,0.3)
            ):
                print("Found nubmer 7")
                return

    print("Not found number 7")

func get_vertical_line(target_color: Color) -> bool:
    var image = $PixelAnalysis.texture.get_image()

    for y in range(image.get_height() - 2):
        for x in range(image.get_width()):

            if (
                colors_match(image.get_pixel(x, y), target_color,0.3,0.3,0.3) and
                colors_match(image.get_pixel(x, y + 1), target_color,0.3,0.3,0.3) and
                colors_match(image.get_pixel(x, y + 2), target_color,0.3,0.3,0.3)
            ):
                print("Found number 1")
                return true

    print("Not found number 1")
    return false

---
