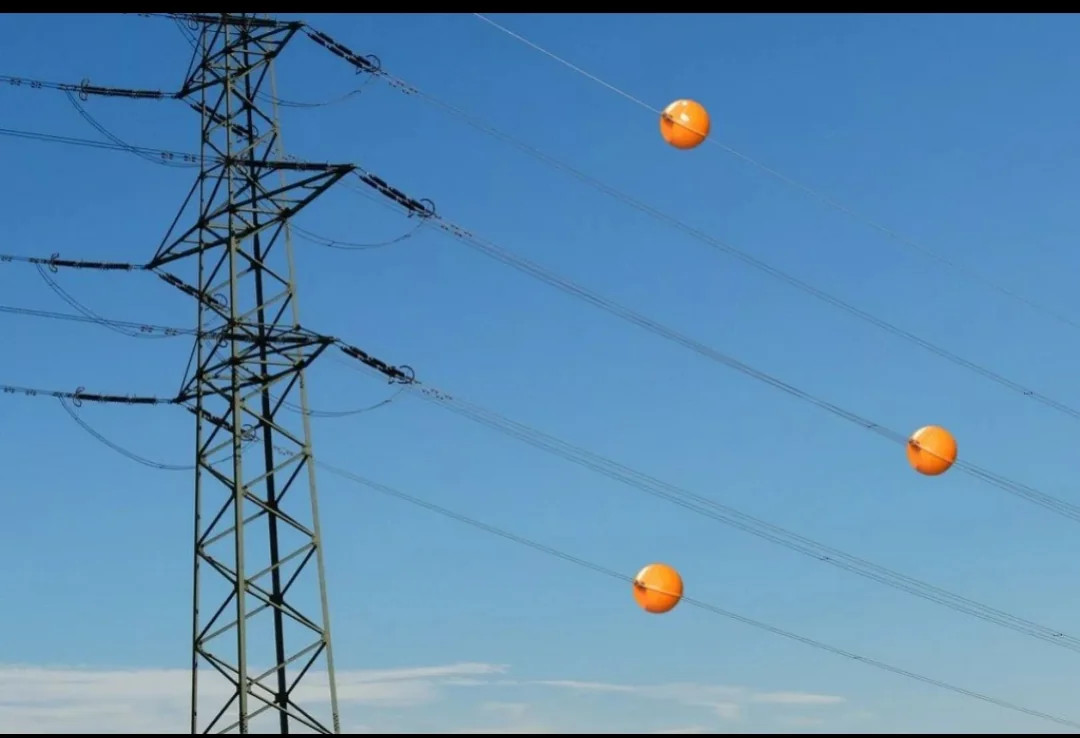

Už vidíme, kde sa zhromadil rovnomerne náboj? Je to na špicoch a rovnomerne sa odpudzuje. A čo je toto? Gauss-Ostrogradského veta, ktorá hovorí jednoducho, že náboj sa hromadí na špicoch. Otázka potom je: Videli ste smerom na Žilinu na Strečno červené gule na vysokom napätí? Na toto sú tam ;)

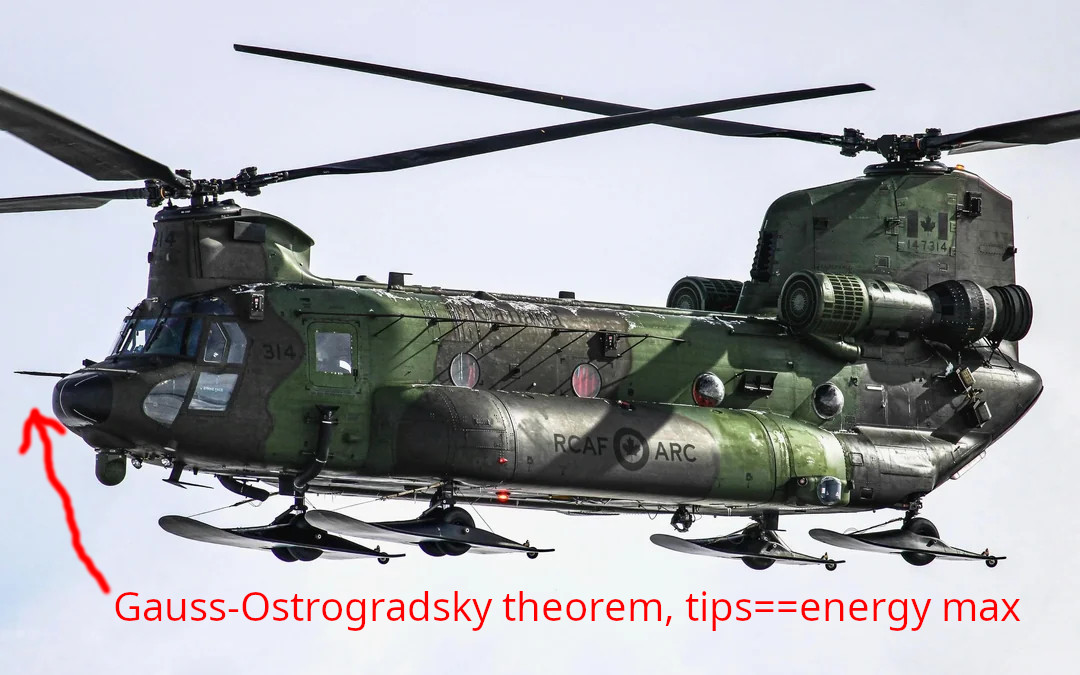

Áno rozkladajú náboj, aby špicaté tvory nezabilo vysoké napätie. Predstavte si vtáčika so špicatou nôžkou, ktorý sa priblíži k vysokému napätiu. Okrem toho sme ich dali oranžové, aby ich videl aj vrtuľník a z diaľky.

https://hrubos.tech/blogy/2025/08/gauss-ostrogradsky-po-enty-raz

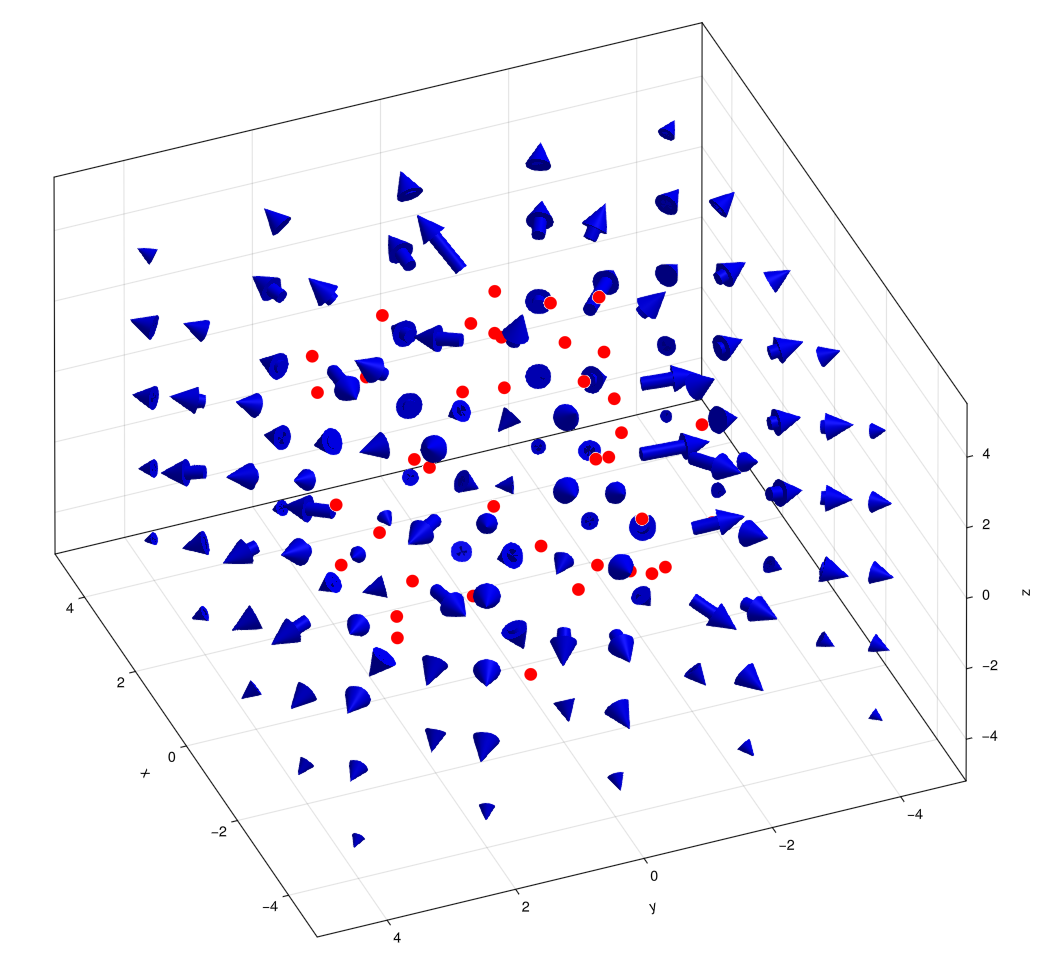

A čo tu? Obrázok:

############################################################
# Install packages (first run only)
############################################################
using Pkg
Pkg.add([
    "GLMakie",
    "StaticArrays"
])

using GLMakie, StaticArrays, LinearAlgebra, Random

# Parameters
N = 40
R = 4.0
dt = 0.02
gridN = 5

# Random points in sphere
function random_point_in_sphere(R)
    while true
        p = rand(SVector{3,Float64}) .* (2R) .- R
        if norm(p) <= R
            return p
        end
    end
end

positions = [random_point_in_sphere(R) for _ in 1:N]
velocities = [SVector(0.0,0.0,0.0) for _ in 1:N]

# Coulomb force
function force(i)
    f = SVector(0.0,0.0,0.0)
    for j in 1:N
        if i != j
            r = positions[i] - positions[j]
            d = norm(r) + 1e-3
            f += r / d^3
        end
    end
    return f
end

# Electric field
function electric_field(p)
    E = SVector(0.0,0.0,0.0)
    for q in positions
        r = p - q
        d = norm(r) + 1e-3
        E += r / d^3
    end
    return E
end

# Simulation step
function step!()
    for i in 1:N
        f = force(i)
        velocities[i] += dt*f
        velocities[i] *= 0.98
        positions[i] += velocities[i]*dt
        if norm(positions[i]) > R
            n = normalize(positions[i])
            velocities[i] -= 2dot(velocities[i], n)*n
            positions[i] = n*R
        end
    end
end

# Grid for vector field (statické pole!)
grid = range(-R,R,length=gridN)
field_points = [SVector(x,y,z) for x in grid, y in grid, z in grid]
field_points = vec(field_points)

function compute_vectors()
    [electric_field(p)*0.3 for p in field_points]
end

# Observables pre častice
pos_obs = Observable(copy(positions))
vec_obs = compute_vectors()  # statické pole pre 3D šípky

# Setup figure
fig = Figure(resolution=(900,900))
ax = Axis3(fig[1,1])

scatter!(ax, pos_obs, color=:red, markersize=18)
arrows!(ax, field_points, vec_obs, color=:blue, arrowsize=0.08)

# Animation
@async begin
    while isopen(fig.scene)
        step!()
        pos_obs[] = copy(positions)
        vec_obs = compute_vectors()  # prepíš statické pole pre arrows!
        arrows!(ax, field_points, vec_obs, color=:blue, arrowsize=0.08)
        sleep(0.02)
    end
end

display(fig)
readline()

---
